mPBPK模型复现代码分享

模型代码库
1

原文：Cao Y, Jusko WJ. Applications of minimal physiologically-based pharmacokinetic models. J Pharmacokinet Pharmacodyn. 2012 Dec;39(6):711-23.

原文下载：

nihms430946.pdf (1.9 MB)

案例复现：阿莫西林

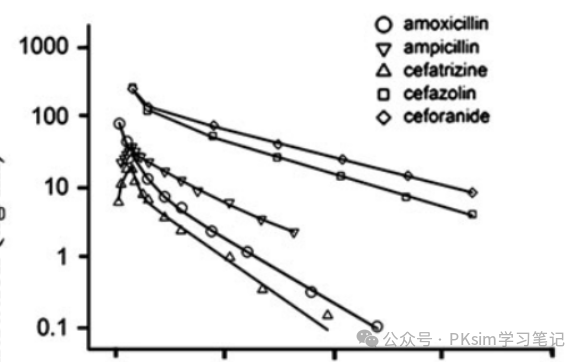

原文图片：

image583×362 40 KB

复现代码：

library(rxode2)

mod <- rxode2({
CL   = TVCL;
V1   = TVV1;
V2   = TVV2;
VP   = TVVP;
FUP  = TVFUP;
Kp   = TVKP;
fd1  = TVFD1;
fd2  = TVFD2;
QCO  = TVQCO;

# derive para
CP = plasma/VP;
C1 = tight/V1;
C2 = leaky/V2;

# define the ODE
d/dt(plasma) =  fd1*QCO*(C1/Kp)+fd2*QCO*(C2/Kp)-CP*(fd1*QCO+fd2*QCO+CL);  d/dt(tight) = (CP-C1/Kp)*fd1*QCO;  d/dt(leaky) = (CP-C2/Kp)*fd2*QCO;
})
# Define fixed effect parameters
theta <- c(
TVCL    = 0.298,
TVVP    = 5.2,
TVV1    = 8.26,
TVV2    = 4.47,
TVFUP   = 0.82,
TVKP    = 0.785,
TVFD1   = 0.018,
TVFD2   = 0.0737,
TVQCO   = 5.6 )

# dose setting
dose <- 1000#mg

# event setting
ev <- et(amount.units = "mg", time.units = "min") %>%
add.dosing(dosing.to = "plasma", dose = dose, nbr.doses = 1,             # dosing.interval = 24,
start.time = 0) %>%
add.sampling(seq(from=0,to=600,by=1))
# create simulation
set.seed(1234)
sim  <- rxSolve(mod,theta,ev,nSub=1) %>%  mutate(time = as.numeric(time))
# concentration-time profile
pl1 <- sim %>%
ggplot(mapping=aes(x=time, y=CP)) +
geom_line(size=1.5, color="red") +
geom_point(data = obs_dat, aes(x=Time, y = Conc))+
theme_bw(base_size = 30) +  scale_x_continuous("Time (MIN)") +  scale_y_continuous("Concentration (mg/L)") +
theme (legend.position = "none", plot.background = element_blank(),         panel.grid.minor = element_blank(), panel.grid.major = element_blank())

plot(pl1)
# export
jpeg(filename = paste0(output_dir, "./rxode.jpg"), width = 4000, height = 3000,res=600)
print(pl1)
dev.off()

mrgsolve的.cpp文件代码分享：

//mPBPK Platform for antiboitics

[PARAM]
//Amoxicillin Parameters
fup = 0.82    // fraction unbound
Kp  = 0.785   // tissue-plasma partition parameter
fd1 = 0.0180  // fraction of the cardiac output for the COM1
fd2 = 0.0737  // fraction of the cardiac output for the COM2
V1  = 8.26    // distribution volume of COM1; L
CL  = 0.298   // clearance; L/min
VSS = 15.4    // the steady state of distribution volume; L
QCO = 5.6     // the cardiac output L/min
VP  = 5.2     // blood volume for man, 5.2 L/70 kg
V2 = 4.47    // extracellular fluid volume, L

[CMT]
PLASMA
TIGHT
LEAKY

[ODE]
double CP = PLASMA/VP;
double C1 = TIGHT/V1;
double C2 = LEAKY/V2;

dxdt_PLASMA = fd1*QCO*(C1/Kp)+fd2*QCO*(C2/Kp)-CP*fd1*QCO+fd2*QCO+CL);
dxdt_TIGHT  = (CP-C1/Kp)*fd1*QCO;dxdt_LEAKY  = (CP-C2/Kp)*fd2*QCO;

[TABLE]
capture CP1=PLASMA/VP;
